nice air shower nozzle Air Shower owner for electronics factory

After Warranty Service: Video technical support, Online support
Certification: CE ISO GMP
Name: Cleanroom air shower
Application: Pharmacy, medical, food industry
Blowing: Top, side blowing

Used: Hospital: Laboratory; Food workshop
Door: 5mm Glass
Material: Stainless steel 304/316, painted steel
Showering time: 0-99s
Size: Customize as client request

nice air shower nozzle Air Shower owner for electronics factory-1

Limit Discounts

Limit Discounts

nice air shower nozzle Air Shower owner for electronics factory-2

Description

Description

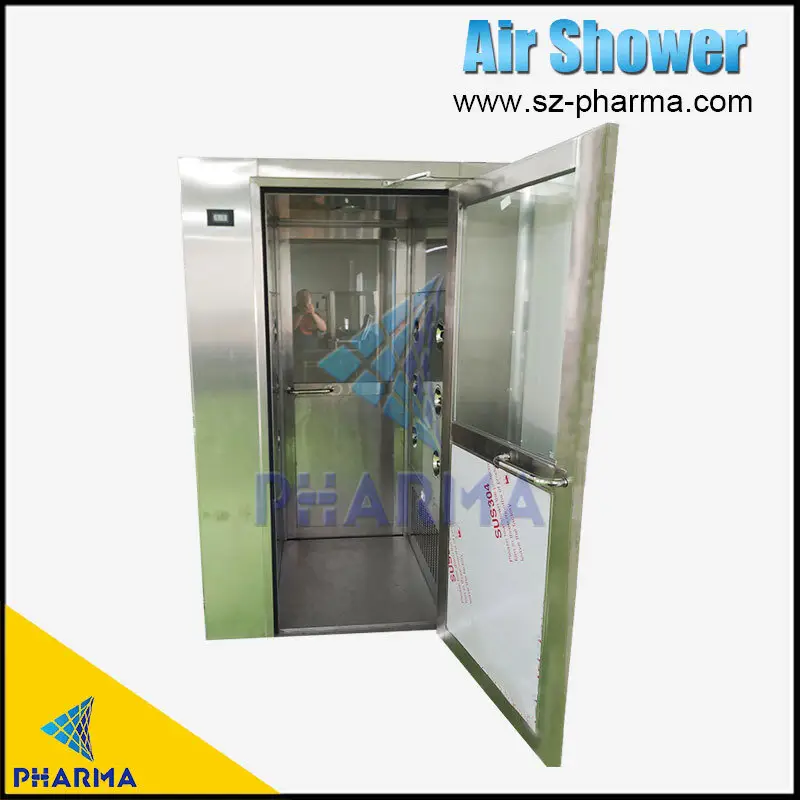

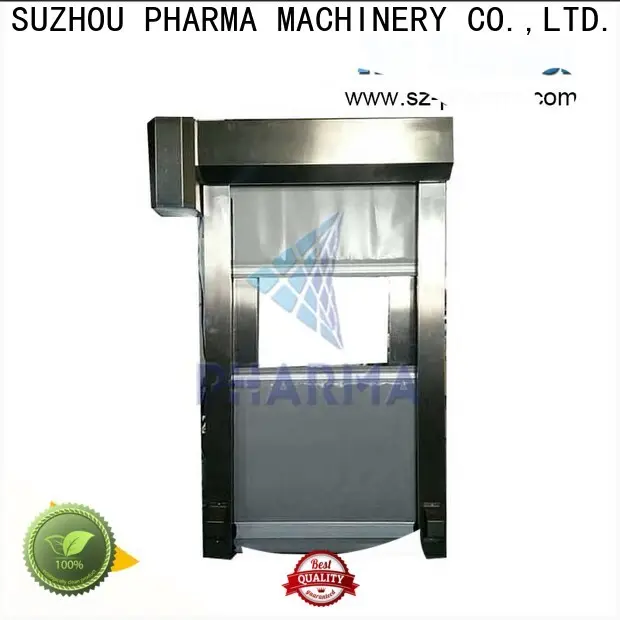

This is a kind of local purifying equipment, fixed on the partition between clean room and unclean room. It is used for shower and removing dust when personnel or objects entering into clean area. Effectively reduce dust source from entering into clean area after used, and keep clean area in normal working state. Shower way: single-side shower, double-side shower, three-side shower, top shower.

Air shower is widely used in LCD and Optoelectronic Display, PCB, microelectronics, dust-free coating, aseptic packaging, medical care, Pharmacy,auto glass and precision parts.

nice air shower nozzle Air Shower owner for electronics factory-3

Main Features

Photoelectric control, automatic shower.

Circulated air design keeps shower area clean in non-shower state.

Double doors adopt electric interlocking to force shower; double doors may be made as automatic movable door.

Made as negative pressure and anti-exploding air shower according to users' requirement.

Equipped with the device to remove static

Carry on air brake, cushion type and other particular design, manufacturing.

nice air shower nozzle Air Shower owner for electronics factory-4

nice air shower nozzle Air Shower owner for electronics factory-5

nice air shower nozzle Air Shower owner for electronics factory-6

nice air shower nozzle Air Shower owner for electronics factory-7

Technical Parameters

Technical Parameters

Model	PH-1300-P1	PH-1300-P1	PH-1300-P2	PH-1300-P3
External dimension W×D×H(mm)	1300×1000×2100	1300×1500×2100	1300×2000×2100	1300×3000×2100
Internal Dimensions W×D×H(mm)	800×930×1960	800×1430×1960	800×930×1960	800×930×1960
Speed	25~27 (m/s)
Nozzle No.	12 pieces	18 pieces	24 pieces	36 pieces
Structure	Cabin: Pre-painted cold work steel sheet; Stainless steel 304
Structure	Door: 5mm glass and built-in automatic door closer
Lighting	LED, built-in type
Dust Collection Efficiency	Over 99.99% 0.3μm D.O.P TEST
HEPA Dimension ×Quantity	595×595×80×2pcs	595×595×80×2pcs	595×595×80×4pcs	595×595×80×4pcs
Showering Time	0-99s adjustable(FACTORY SETTING 10S)
Power Supply	380V 50Hz, 3Phase/220V 60Hz 1Phase

Installation

Installation

nice air shower nozzle Air Shower owner for electronics factory-8

nice air shower nozzle Air Shower owner for electronics factory-9

nice air shower nozzle Air Shower owner for electronics factory-10

nice air shower nozzle Air Shower owner for electronics factory-11

nice air shower nozzle Air Shower owner for electronics factory-12

nice air shower nozzle Air Shower owner for electronics factory-13

nice air shower nozzle Air Shower owner for electronics factory-14

nice air shower nozzle Air Shower owner for electronics factory-15

b******a

In the production of PHARMA air shower nozzle, only the superior quality raw materials are adopted. It is suitable for the production of luggage of various specifications

i******t

The production of PHARMA air shower nozzle combines high-quality materials, cutting-edge technology, advanced equipment, and experience professionals. It brings exceptional throughput and process control

d******k

PHARMA decontamination air shower is manufactured adopting the latest technology and advanced technical equipment. It will enhance the efficiency and capacity of luggage makers worldwide

p******l

PHARMA decontamination air shower is produced using optimum quality materials which we source from trusted vendors of the market. The unit has high resistance from impact

r******t

PHARMA decontamination air shower is precisely engineered using premium quality raw materials sourced from reliable vendors.

p******r

air shower nozzle Selected high-grade materials, using first-class manufacturing technology and exquisite processing technology, it is not only excellent in workmanship and beautiful in appearance, but also has the advantages of anti-corrosion, wear resistance, anti-aging, durable, etc., and the quality is stable. The quality is trustworthy.
